Logitech Scribe

• DIMENSIONS

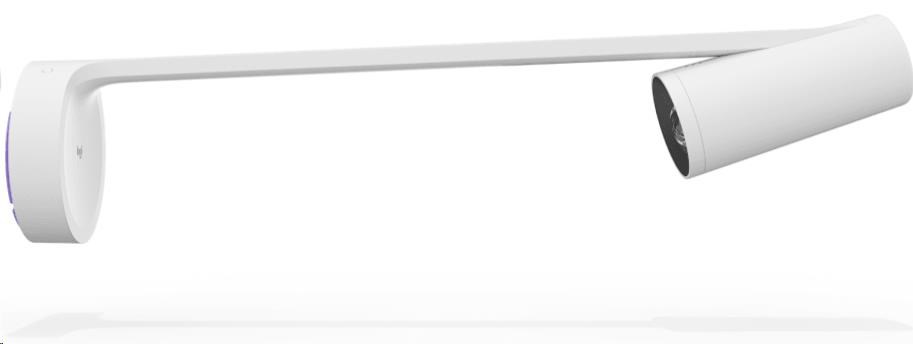

  Camera

  • Height: 149 mm
  • Width: 119 mm
  • Depth: 573 mm
  • Weight: 1.1 kg

  Share Button

  • Height: 12.7 mm
  • Diameter: 71.8 mm
  • Weight: 108 g

  Power Injector

  • Height: 91 mm
  • Width: 60.2 mm
  • Depth: 36.3 mm

  Dongle Transceiver

  • Height: 22.5 mm
  • Width: 31 mm
  • Depth: 83.7 mm
  • Cable length: 500 mm

  Included Cabling (x2)

  • Length: 5 m

• SYSTEM REQUIREMENTS

  Whiteboard

  • Maximum Whiteboard Dimensions
    • Height: 1.2 m
    • Width: 2 m

  Customer-Supplied Cabling

  • Cable Type: Cat5e or higher [up to 35 meters in total length]

• TECHNICAL SPECIFICATIONS

  Certifications & Compatibility

  • Integrates with Microsoft Teams Rooms on Windows and Zoom Rooms (Windows or macOS) as a whiteboard content camera.
  • See www.logitech.com/support/scribe-compatibility for pending and granted certifications and compatibility updates.
  • Compatible with virtually any video conferencing application as a USB-connected camera.

  Camera

  • Output Resolution: 1080p at 15 fps
  • Built-In AI: Broadcasts AI-enhanced image stream into video meetings

  Share Button

  • Power: 2 x CR2032 battery
  • Adhesive-backed mounting
  • Share button support may vary by video conferencing service provider.
  • See www.logitech.com/support/scribe-compatibility for latest information.

  Interfaces

  • Camera: Category Cable Port
  • Share Button: Bluetooth Low Energy

  Power & Cables

  • Power supply: 100-240V auto-switching power supply with international adaptor set
  • Cable Type: Cat5e SF/UTP AWG26 or higher

  Environmental

  • Operating Temperature: 0-40°C
  • Storage Temperature: -40-70°C
  • Humidity: 10-95%

  Security

  • Full Disk Encryption: AES-128

  Device Management

  • Logitech Sync

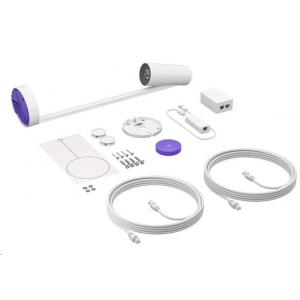

• PACKAGE CONTENTS

  • Camera
  • Share Button
  • Dongle Transceiver
  • 100-240v Power Supply with International Adaptor Set
  • 5.0 m Cat5e Cables x 2

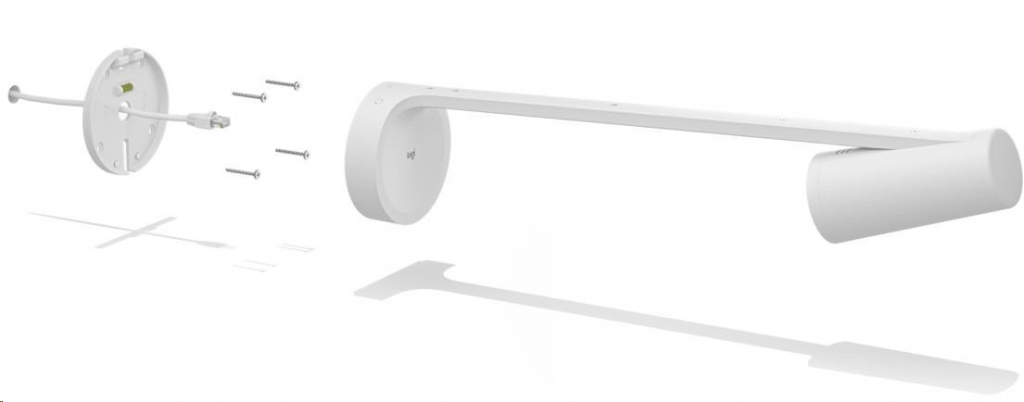

  • Camera Installation Kit
  • Documentation

• WARRANTY INFORMATION

  Standard: 2-year limited hardware warranty included.
  Extended: Additional one-year extended warranty available at the time of hardware purchase.
  Contact your reseller for availability.

• PART NUMBER

  • 960-001332
