TP-Link OMADA switch SL2428P (24x100Mb/s, 2xGbE, 2GbE/2xSFP combo, 24xPoE+, 250W)
Ostatní IT
Switche
TP-Link OMADA switch SL2428P (24x100Mb/s, 2xGbE, 2GbE/2xSFP combo, 24xPoE+, 250W)
TP-Link OMADA switch SL2428P (24x100Mb/s, 2xGbE, 2GbE/2xSFP combo, 24xPoE+, 250W)
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Fast Ethernet + Gigabit uplink; Počet portů LAN:24; Počet portů LAN:24; Přenosová rychlost LAN (Mb/s):100; Přenosová rychlost LAN (Mb/s):100
| Cena bez DPH | 5 720 Kč |
| Cena s DPH | 6 921,00 Kč |
Skladem 2 ks
Zítra u Vás nebo na pobočce

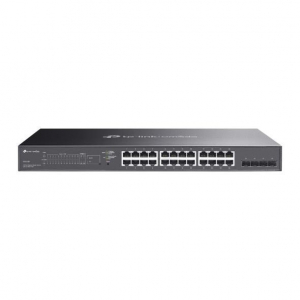

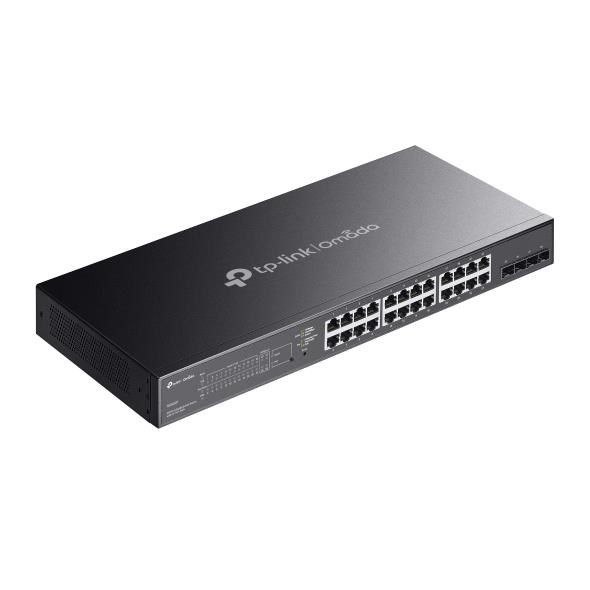

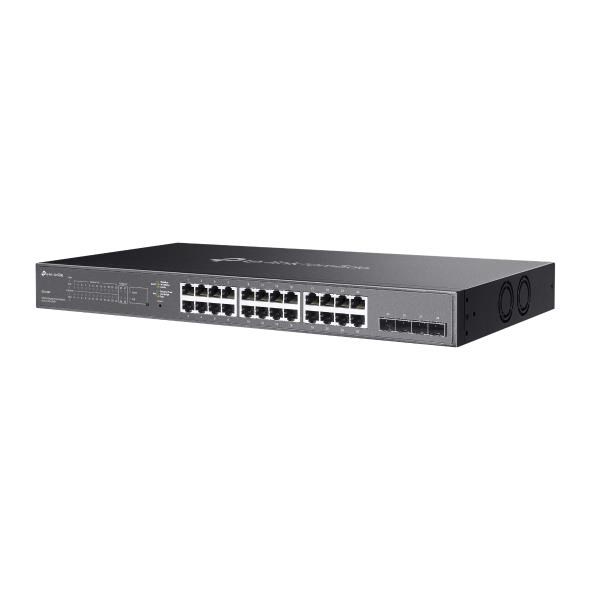

TP-Link OMADA switch SL2428P
24portový 10/100 Mb/s inteligentní switch JetStream se 4 gigabitovými porty a 24 porty PoE+
Inteligentní switch TP-Link TL-SL2428P je vybaven 24 porty RJ45 10/100 Mbit/s, 4 porty RJ45 10/100/1 000 Mbit/s a 2 kombinovanými gigabitovými SFP sloty. Všech 24 portů RJ45 10/100 Mbit/s podporuje standard 802.3at/af (PoE+) s celkovým rozpočtem napájení PoE 250 W* a užitečnými funkcemi řízení spotřeby PoE. Switch poskytuje vysoký výkon, technologii QoS na podnikové úrovni, užitečné strategie zabezpečení a bohaté funkce správy na 2. vrstvě.
- Obsahuje 24 portů PoE s celkovým rozpočtem napájení PoE 250 W* a užitečnými funkcemi řízení spotřeby PoE.
- Integrovaná strategie zabezpečení včetně 802.1Q VLAN, zabezpečení portů a ochrany proti zahlcení sítě (Storm Control) pomáhá zabezpečit investici do sítě LAN.
- Funkce L2/L3/L4 QoS a IGMP Snooping optimalizují výkon hlasových a video aplikací.
- Řízené režimy WEB/CLI, SNMP a RMON poskytují bohaté možnosti správy.
- Funkce Dual Firmware Image zvyšuje spolehlivost a dobu, po kterou je síť bez výpadků.
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/sl2428p/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Interface | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| PoE Budget | 250 W |
| Dimensions ( W x D x H ) | 17.3*7.1*1.7 in.(440*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 18.8 W (220 V / 50 Hz with no PD connected) 286.7 W (220 V / 50 Hz with 250 W PD connected) |
| Max Heat Dissipation | 64.1 BTU/h (with no PD connected) 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 12.8 Gbps |
| Packet Forwarding Rate | 9.5 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9216 Bytes |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/ DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Actions for flows - Mirror(to supported interface) - Redirect(to supported interface) - Rate Limit - QoS Remark • Storm Control - Multiple Control Modes(kbps/ratio/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation - static link aggregation - Up to 8 aggregation groups and up to 8 ports per group - 802.3ad LACP • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both - CPU Mirroring • Device Link Detect Protocol(DLDP) |
| L2 Multicast | • 512 IPv4,IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication - Static Group Config • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Multicast VLAN Registration • Multicast Filtering |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery(MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding |
| Security | • AAA • 802.1X - Port based authentication - MAC(Host) based authentication - Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Gurad - 253 Entries - Source IP+Source MAC • IPv6 Source Gurad - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS1.0 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| Management | • Web-based GUI and CLI management • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • System Log • 802.1ab LLDP/ LLDP-MED |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SL2428P Power Cord Installation Guide Rackmount Kit Rubber Feet |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: 0°C~50°C (32°F~122°F); Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
